CNC Tool Holders, Pull Studs & Spindle Gauges – Made in India since 1985
Precision Tooling That Powers Performance
At PTP CNC, we don't just supply tooling—we help you machine faster, reduce downtime, and improve output. Our high-precision tool holders and pull studs are built for consistent performance, longer life, and reliable results under demanding conditions.
PTP CNC Toolings Pvt. Ltd. (est. 1985; ISO 9001) makes CNC tool holders in BT, SK, CAT and HSK-A, pull studs to every major standard, ER collets, nuts and sealing rings, HSK coolant tubes and spindle gauges including the Clamprite drawbar-force gage.
How Can We Help You?
Pick your spindle and the part. You get every matching catalogue code.
Step 1: What's your spindle?
MANUFACTURED FOR STRENGTH AND LONG LIFE
PTP CNC Toolings Pvt. Ltd., established in 1985, is a modern machine shop with capabilities to meet the product & quality requirements of the modern industry, world-wide. The company follows Statistical Quality & Process Control Principles.
Quality Control Equipment
Get In Touch
Service available 7 days a week
Complete CNC Tooling Solutions
Comprehensive range of precision tool holders, pull studs, collet chucks & spindle maintenance gauges for all major spindle types.

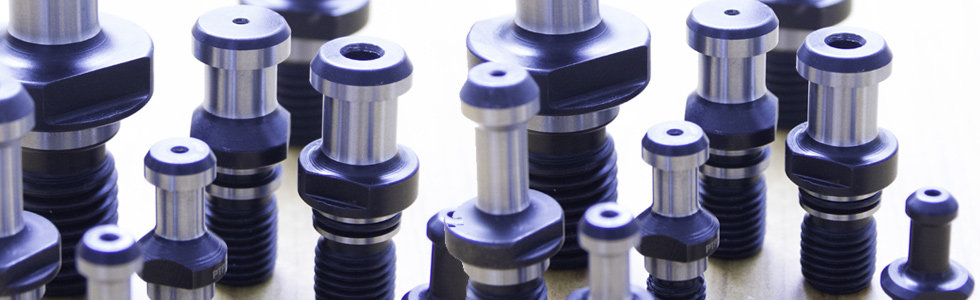

Pull Studs
HP (High Performance) Retention Knobs - CNC Ground, MPT Tested

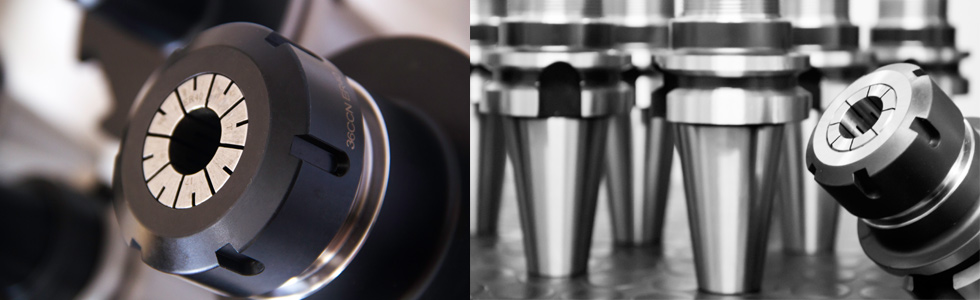

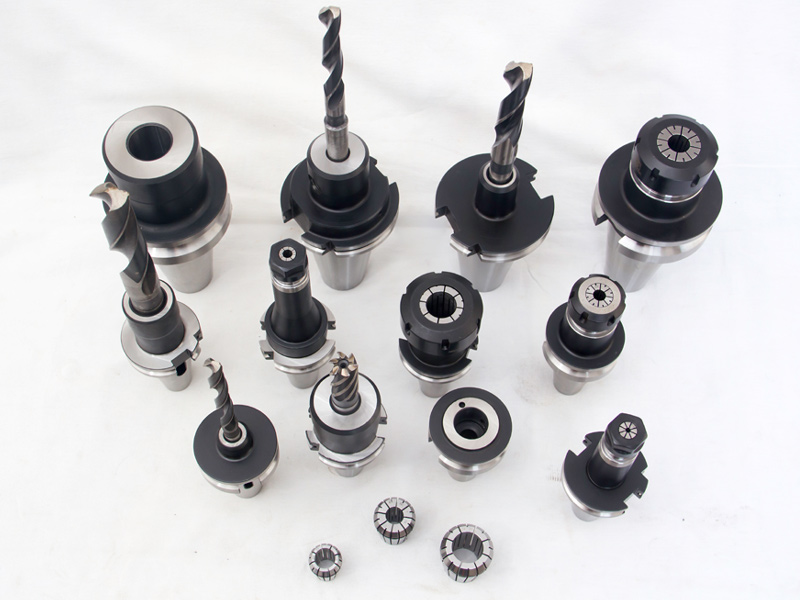

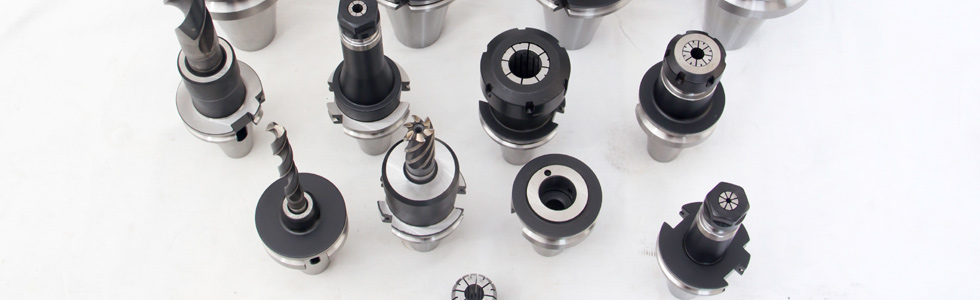

Tool Holders
Precision CNC Tool Holders for all spindle types

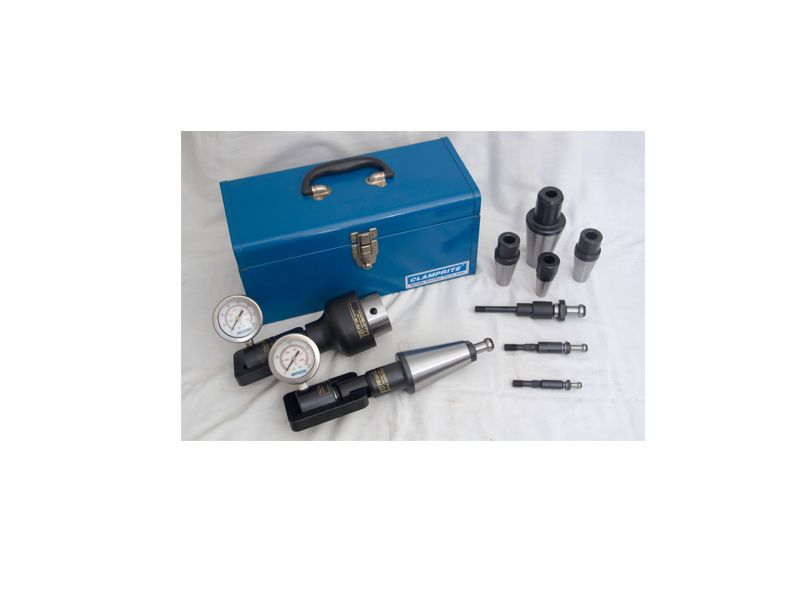

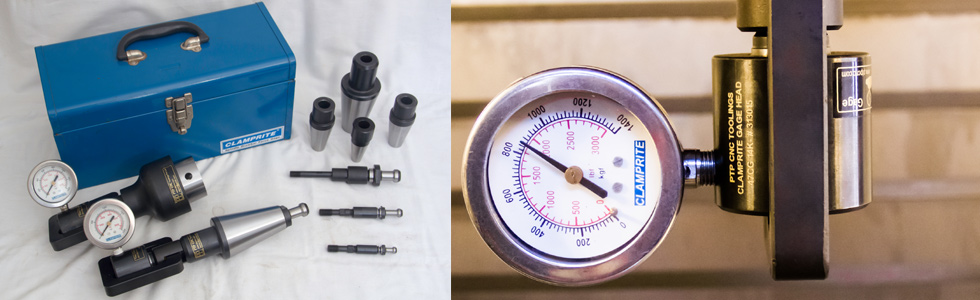

Spindle Maintenance Gauges
Precision instruments for spindle health monitoring
Accessories

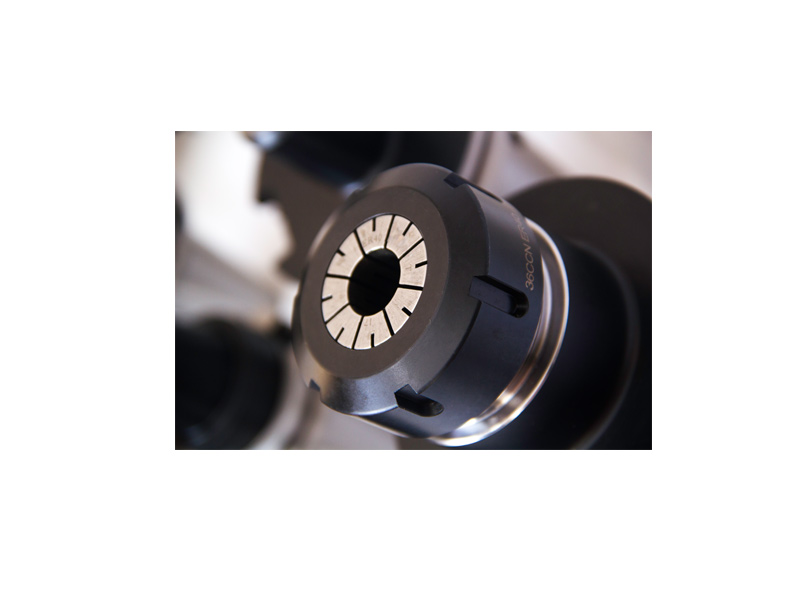

ER Clamping Nuts, Hydro Intermediate Sleeves, Collets, HSK Coolant Tubes & Spanners
From certified steel to your spindle
Holders and pull studs follow the same route in Belgaum, from certified steel to dispatch. The crack and proof test (station 04) is for pull studs.
Certified alloy steel
1400–1800 N/mm² certified-purity bar stock — every piece marked with code no. and traceability.
CNC turning & milling
Profiles machined to the catalogue drawing on CNC lathes and VMCs.
Precision taper grinding
Holder tapers ground to AT3 or better, runout within 0.005 mm TIR · stud profiles CNC-ground.
Pull-stud MPT & proof testing
Every pull stud: 100% magnetic particle crack inspection · proof-loaded at 2.5× clamping force.
Balanced & dispatched
Holders balanced G2.5 @ 25,000 rpm · dispatched across India.
Certified alloy steel
1400–1800 N/mm² certified-purity bar stock — every piece marked with code no. and traceability.
CNC turning & milling
Profiles machined to the catalogue drawing on CNC lathes and VMCs.
Precision taper grinding
Holder tapers ground to AT3 or better, runout within 0.005 mm TIR · stud profiles CNC-ground.
Pull-stud MPT & proof testing
Every pull stud: 100% magnetic particle crack inspection · proof-loaded at 2.5× clamping force.
Balanced & dispatched
Holders balanced G2.5 @ 25,000 rpm · dispatched across India.
PROCESS & MATERIAL CERTIFICATES AVAILABLE WITH EVERY BATCH ON REQUEST
Questions about PTP CNC Toolings
What does PTP CNC Toolings manufacture?
CNC tool holders in BT, SK (ISO), CAT and HSK-A shanks (ER and mini ER collet chucks, Weldon end mill holders, face mill and combi shell mill arbors, Morse taper and screw-in adapters, shrink fit and hydraulic chucks, boring bar blanks), pull studs (retention knobs) to MAS-BT, DIN 69872, ANSI/ASME B5.50, JIS B6339, ISO and OTT standards, ER collets, collet nuts and sealing rings, HSK coolant tubes, and spindle gauges: the Clamprite drawbar force gage, test mandrels and ATC alignment gauges.
Where is PTP CNC Toolings located?
D-74 & 75, Dutch Industrial Estate, Udyambag, Belagavi (Belgaum), Karnataka 590008, India. The company was founded in 1985.
What quality standards does PTP CNC Toolings meet?
PTP CNC Toolings is ISO 9001 certified. Tool holder tapers are ground to AT3 or better. Every pull stud is magnetic-particle tested (MPT) and proof tested at 2.5× the clamping force. Shanks follow MAS BT (ISO 7388-2 type J), DIN 69871 (ISO 7388-1), ANSI/ASME B5.50 and DIN 69893-1 / ISO 12164-1 (HSK-A); pull studs follow ISO 7388-3, MAS-BT, DIN 69872, ANSI/ASME B5.50 and JIS B6339; ER collets and nuts follow DIN 6499.
How do I request a quote or CAD files?
Call or WhatsApp +91-9538456478 or email ptpcnc@ptpcnctoolings.com with the ordering code. DXF/STEP CAD files and parts made to your drawing are available on request.
Have a drawing? We'll machine to it.
Specials, OEM equivalents, non-standard GPLs, FCC coolant channels — send your drawing or spec and our shop quotes it fast. Made in Belgaum since 1985.
